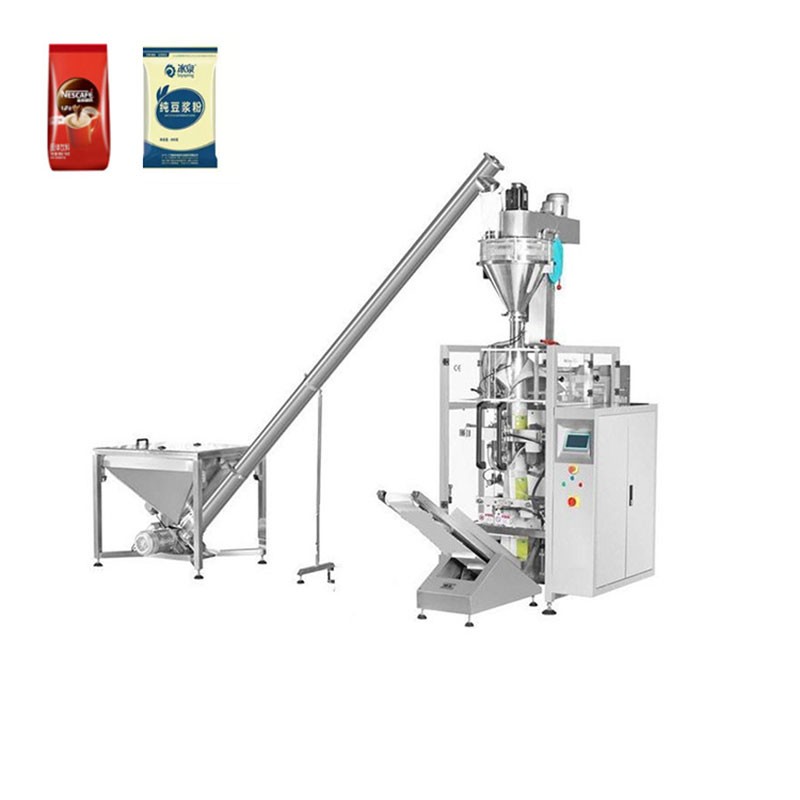

Coffee Bag Forming Filling Sealing Machine
- Category： Bag Packaging Machine
- The Vertical Seal Packaging Machine is an automatic system that forms, fills, and seals bags or sticks with a variety of products like powders and granules. It offers an easy-to-use interface, precis
- This bag packaging machine can create custom-shaped bags and process different materials, ensuring efficient and long-lasting packaging performance.
Brief Introduce:
The machine adopt servo motor control, screw measuring , precision ±1﹪.Adjustment product weight without any tools. Filling head can be changed , suitable for mix film and PE film .English and Chinese screen display ,operation is simple .PLC computer system , function is more stable , adjustment any parameters not need stop machine.It can stock ten dispose , simple to change variety.
Sever motor drawing film , position accurately.Temperature independent control system ,precision get to ±1℃.
Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
Packing type diversification , pillow sealing, standing type ,punching etc.Bag–making , sealing, packing, print date in one operation.Work circumstance quiet, low noise.
Features
* Film drawing down system controlled by servo motor.* Automatic film rectifying deviation function;
* Various alarm system to reduce waste;
* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;
* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
Details of Coffee Bag Packaging Machine:
Technical parameters:
|
Model |
HKV2 |
|
Suitable product |
Coffee, chocolate, tea powder, etc. |
|
Capacity |
30-50bags/min |
|
Bag size |
L: 60~300(mm) W: 80~200（mm） |
|
Sealing type |
Pillow Stand type |
|
Packing material |
BOPP/CPP，PET/AL/PE |
|
Voltage |
1 phase 220V @ 50/60hz - 2.5kw |
|
Dimension |
1700mm*950mm*1900mm |
|
Weight |
500kg |
|
Compressed air consumption |
0.4-0.8Mpa |
