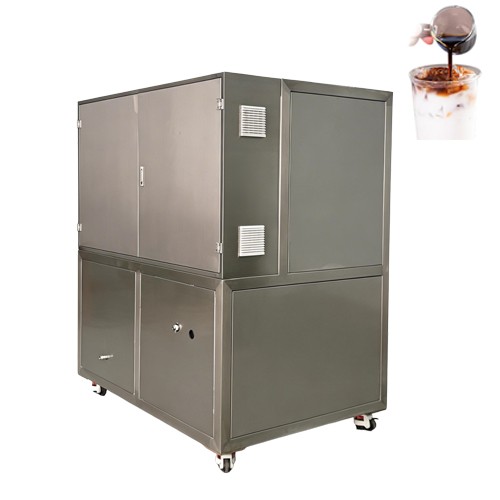

5kg Industrial Coffee Extraction Machine
- Category： Products
- • Daily Output: ~800 to 1000 Liters per 24 hours.
- • Batch Speed: 10 to 15 minutes from powder to liquid.
- • Dual Function: Brews both high-pressure hot espresso and low-temperature cold brew.
- • Labor Saving: Fully automated feeding, extraction, and spent grounds (puck) ejection.
1.Introduction of 5KG Coffee Extraction Equipment
The Perfect Balance of Capacity and Flexibility When a 1kg system is too small for your growing orders,but a 10kg system is more capacity than you need right now, our 5kg industrial Coffee Extractor is the perfect fit.
It's designed as a reliable workhorse for mid-sized roasteries, regional RTD brands, and coffee chains.Producing up
to 1000 liters of concentrate per day, it gives you industrial-grade automation without taking up your entire factory floor.

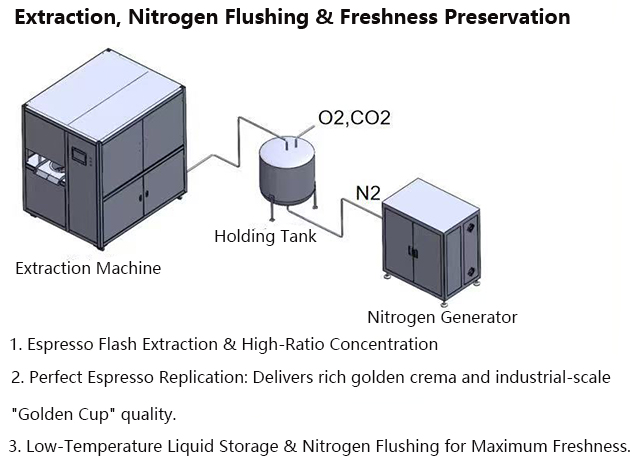

2.How Our System Protects Your Coffee Flavor
3.Basic Parameters of 5kg Coffee Extractor
MODEL
HK-E5
BATCH CAPACITY
5kg Coffee Powder
MATERIAL
Full stainless stee Food-grade SUS304
SIZE
1700×1400×1900 mm
WEIGHT
800kg
Output per Batch
20-15L concentrate
Daily Capacity
~800-1000L/24h
Extraction time
10-15min per batch
POWER
40KW
RATIO(Powder-to-liquid )
1:2–1:3 (adjustable)
PLC
Siemens PLC with Touch screen control
EXTRACTION METHOD
Cold Brew / Hot Extraction
WATER USAGE
Pure water/ Mineral water
FITER PRECISION
100 mesh filter (200/300 mesh optional)
4.Why This 5kg System Makes Sense for Your Business
With automated feeding and an enclosed extraction process, your operators can keep batches running back-to-back with minimal downtime.
• Lock in Your Flavor Profile You don't want your coffee tasting different depending on who is operating the machine.
We use a Siemens PLC touch screen that lets you dial in the exact water temperature, pressure, and extraction time. Once you find the perfect
recipe, save it.The machine will replicate that exact flavor profile batch after batch.
• Fully Enclosed, Full Stainless Build Coffee is acidic, and cheap materials will rust or taint the flavor. That’s why the entire machine—from the frame to the internal cylinders—is built from food-grade SUS304 stainless steel. The fully enclosed process also means
no external contaminants can mess with your product, and no aroma escapes into the room before it's cooled.
5.Cleaning & Maintenance (CIP Ready)
Keeping the system sanitary shouldn't take hours. We offer two ways to keep your machine clean:• Standard Cleaning (One-Touch Flush): Every 5kg unit comes with a built-in hot water flush system. Press a button on the screen,
and it automatically.rinses the brewing head and internal pipes. Perfect for quick clean-ups between daily batches.
• Optional CIP Integration: If your facility runs under strict food-safety protocols, we can upgrade the machinewith a fully integrated
CIP (Clean-In-Place) system, or build it to connect directly to your factory's central CIP station for deep acid/alkali sanitation.
6.Ready to Scale Up Your Production?
Upgrading your equipment is a big decision. Let’s make sure this 5kg system is the right fit for your daily volume.Contact our engineering team to discuss your current production bottlenecks. We can provide real-world yield estimates based on
your coffee beans,share videos of the machine running,or help you design a complete line with downstream packaging equipment.
