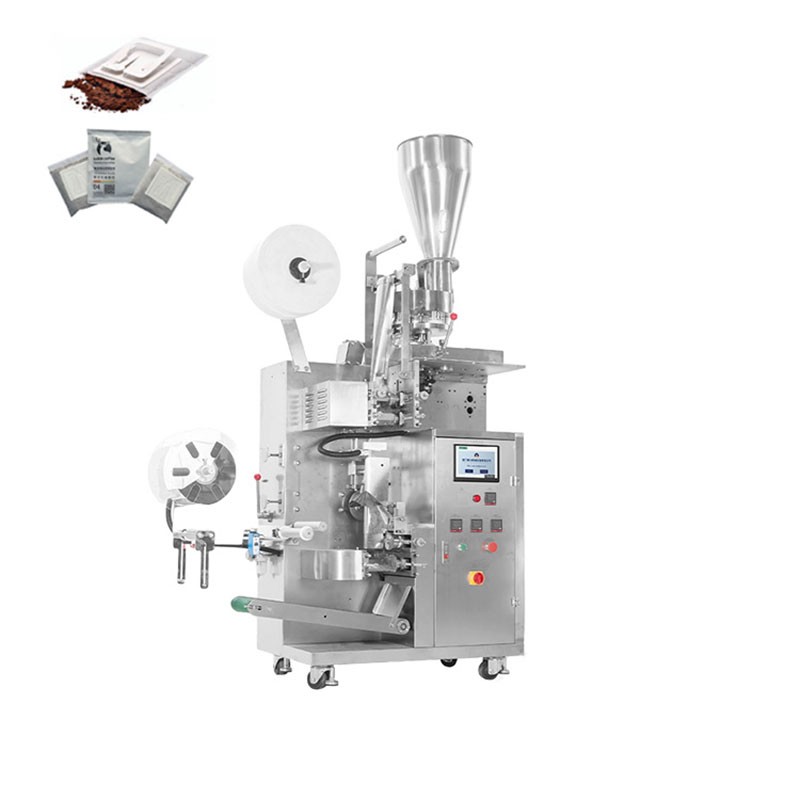

Drip coffee bag packaging machine

Category： Bag Packaging Machine
The Drip Coffee Packaging Machine is an automated precision packaging system for coffee/tea, utilizing ultrasonic sealing and sliding discharge mechanisms to preserve product integrity.
It integrates Mitsubishi PLC controls, Panasonic servos, a 10-inch HMI, and intelligent alarms for operational stability.
Hygienic SUS304 stainless steel construction combines with PID temperature regulation and servo-driven film control to ensure sanitary conditions and premium packaging quality.
INQUIRY EMAIL

Introduction of Drip coffee bag packaging machine

The drip coffee packing machine serves as a versatile automated solution for precision unit-dose packaging of
small-particle products in both inner and outer pouch configurations, including popular formats like drip coffee
sachets (also known as ear-hook coffee, pour-over coffee, filter coffee, or single-serve brew bags), tea sachets,
and pre-portioned coffee pouches. This system efficiently handles the hygienic encapsulation of loose ingredients
while maintaining freshness, catering specifically to the growing market of instant-brew beverage formats
that combine convenience with artisanal preparation experiences.

Features of Drip coffee bag packaging machine

Applicable Scope:This machine is designed for single-dose inner/outer bag packaging of small-particle materials such as tea leaves,
herbal teas, health supplement granules, and similar products.

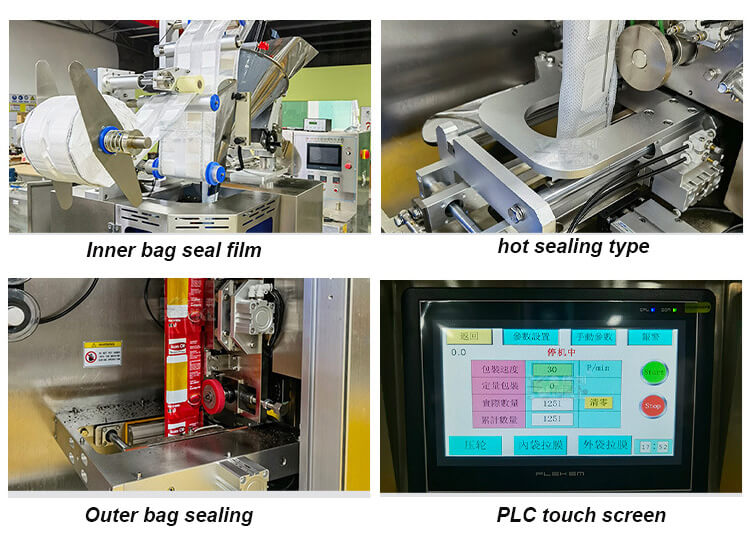

Packaging Control:Stepper motor-driven film feeding ensures stable bag length and precise positioning for both inner and outer pouches.
Temperature Control:Equipped with a PID temperature controller to enhance sealing accuracy and adaptability across diverse materials.
Human-Machine Interface:PLC-controlled operations with an intuitive HMI display guarantee hygiene reliability and user-friendly production monitoring.

Packaging Materials:Compatible with tea filter paper, cotton thread, composite films (e.g., PET/AL/PE), and custom-printed labels.

Specifications of Drip coffee packing machine

Specifications of Drip coffee packing machine
Bag type	3 sides sealing
Packing speed	1200-1800 bags/hour
Sealing type	inner bag sealed with high temperature Outer bag sealed with hot sealing type
Inner filter bag size	L(50mm-70mm)*W(45mm-80mm)
Outer bag size	L120mm*W100mm
Filling range	1-20 g
Packing machine Dimension	L 1650×W 860×H 2350mm
Weight	660kg
Voltage supply	220v 50HZ 3.5kw
