10kg Industrial Coffee Extraction Machine

Category： Industrial Coffee Extraction Machine
• Massive Daily Output: 10kg batch capacity yielding 20-25L of concentrate per cycle, achieving ~2000L every 24 hours
• Dual Hot & Cold Brew: supporting both high-pressure hot espresso and low-temperature cold brew in one unit
• Precision Engineering: Features ±0.5°C temperature control and customizable extraction curves for the perfect
• Unmanned Operation: Fully automatic weighing, feeding, extraction, and continuous slag discharge.
INQUIRY EMAIL

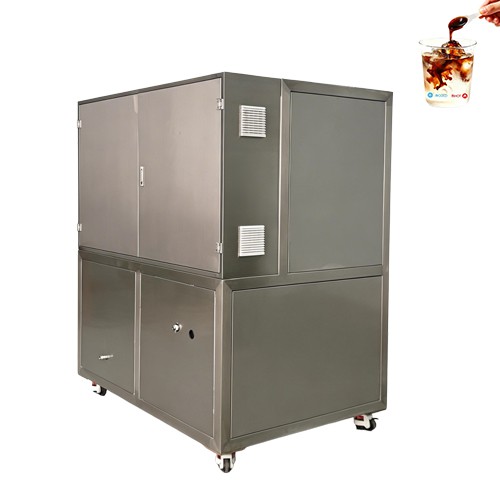

1.Introduction of 10KG Coffee Extraction Equipment

High-Capacity Extraction for Indusrial Production Engineered for large-scale coffee concentrate and RTD beverage production,

our 10kg Industrial Espresso Extractor delivers up to 2,000 liters of premium coffee liquid per day. Combining traditional Italian espresso

principles (10 Bar pressure) with modern automated engineering, this system ensures consistent quality, high extraction efficiency,

and minimal operating costs for large-volume producers.

2.Technical Specifications of 10kg Coffee Extractor

MODEL	HK-E10
BATCH CAPACITY	10kg Coffee Powder
MATERIAL	Full stainless stee Food-grade SUS304
SIZE	1730×1600×1900 mm
WEIGHT	1000kg
Output per Batch	20-25L concentrate
Daily Capacity	~800-1000L/24h
Extraction time	10-15min per batch
POWER	55KW
RATIO(Powder-to-liquid )	1:2–1:3 (adjustable)
PLC	Siemens PLC with Touch screen control
EXTRACTION METHOD	Cold Brew / Hot Extraction
WATER USAGE	Pure water/ Mineral water
FITER PRECISION	100 mesh filter (200/300 mesh optional)
Brix	8-12
WARRANTY PERIOD	2 years

3.Advanced Core Features

• Dynamic Multi-Stage Extraction

Unlike traditional static steeping, our brew basket only needs to hold the 10kg powder, not the final 20L liquid.

Here is how our dynamic process works:

✔ Pre-Infusion (Blooming): A micro-dose of water wets the grounds to degas and unlock core flavors without needing excess water.
✔ Dynamic High-Pressure Flow: Continuous pressurized water actively flows through the coffee bed to extract massive yields.
✔ Filter Protection: The bloomed coffee forms a natural buffer layer. This allows pressure to rise smoothly, preventing violent impacts and extending filter life.
✔ Smart Pressure Control: The 10-bar pressure isn't forced by overworking the pump. Instead, electric cylinders precisely adjust the tamping density of the puck
to create the perfect natural resistance.

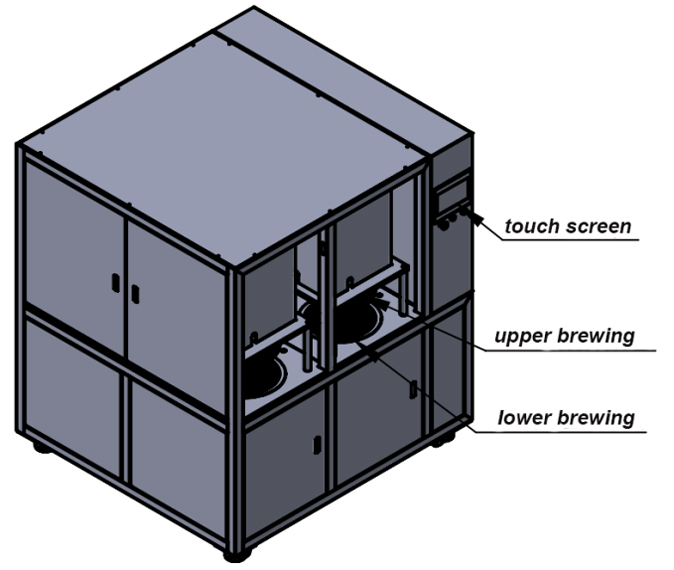

• Optimized Flat-Bed Extraction Technology The extraction tank utilizes a flat structure to maximize the contact area between the coffee powder and water.
Combined with a precision brewing head featuring evenly distributed 1.2mm pores, it guarantees uniform water saturation, preventing channeling and
improving overall extraction yield.
• Smart Automation & Curve Replication Powered by a Siemens PLC and a 10-inch industrial touch screen, the machine offers full-chain automation.
Operators can easily adjust pressure, time, and dosage. The system allows you to save multiple extraction recipes and accurately retrieve them
with "One-Click Curve Replication," ensuring 100% product consistency across batches.
• Maximum Aroma Preservation To protect the delicate flavor profile of your coffee, the system utilizes a fully closed pipeline design.
The freshly extracted liquid is rapidly cooled within the closed loop, significantly reducing oxidation and aroma loss, resulting in a richer, more authentic coffee flavor.
• Continuous & Efficient Workflow Designed for 24/7 operation, the HK-E10 features automatic powder feeding and automatic puck ejection (slag discharge).
This continuous extraction capability drastically reduces downtime between batches, making a 10-15 minute cycle a reality.

4.Who Is This Machine For?

This system is the ultimate turnkey solution for businesses looking to scale their liquid coffee operations:
✔ Large-Scale Concentrate Producers

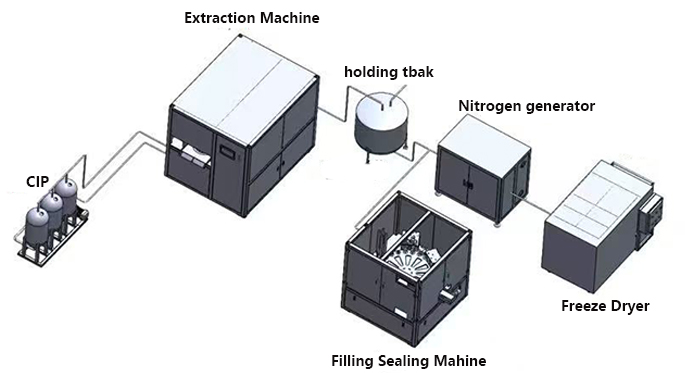

✔ Freeze-Drying & Spray-Drying Coffee Plants
✔ RTD (Ready-to-Drink) Beverage Manufacturers

✔ Coffee Roasters expanding into the liquid coffee market

✔ Coffee Chains requiring central kitchen production
