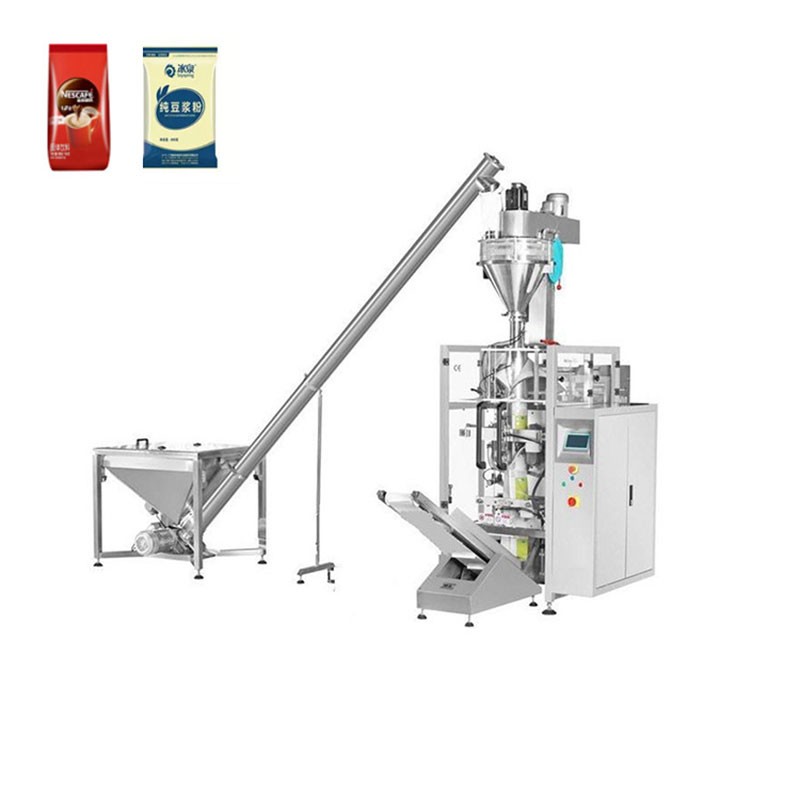

Coffee Bag Forming Filling Sealing Machine

Categoria： Bag Packaging Machine
The Vertical Seal Packaging Machine is an automatic system that forms, fills, and seals bags or sticks with a variety of products like powders and granules. It offers an easy-to-use interface, precis
This bag packaging machine can create custom-shaped bags and process different materials, ensuring efficient and long-lasting packaging performance.
RICHIESTA E-MAIL

Brief Introduce:

The machine adopt servo motor control, screw measuring , precision ±1﹪.Adjustment product weight without any tools. Filling head can be changed , suitable for mix film and PE film .
English and Chinese screen display ,operation is simple .PLC computer system , function is more stable , adjustment any parameters not need stop machine.It can stock ten dispose , simple to change variety.
Sever motor drawing film , position accurately.Temperature independent control system ,precision get to ±1℃.
Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
Packing type diversification , pillow sealing, standing type ,punching etc.Bag–making , sealing, packing, print date in one operation.Work circumstance quiet, low noise.

Features

* Film drawing down system controlled by servo motor.
* Automatic film rectifying deviation function;
* Various alarm system to reduce waste;
* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;
* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

Details of Coffee Bag Packaging Machine:

Technical parameters:

Model

HKV2

Suitable product

Coffee, chocolate, tea powder, etc.

Capacity

30-50bags/min

Bag size

L: 60~300(mm) W: 80~200（mm）

Sealing type

Pillow Stand type

Packing material

BOPP/CPP，PET/AL/PE

Voltage

1 phase 220V @ 50/60hz - 2.5kw

Dimension

1700mm*950mm*1900mm

Weight

500kg

Compressed air consumption

0.4-0.8Mpa

Etichette: Coffee Bag forming filling sealing machine
